Bellia

Artisan way of quality

Bellia

Bellia series bring artisan way of quality together with exclusive technology.

Key Features

UV protection

Weather proof IP66

CE certified

-30 to +60 °C

1 to 4 outlets

16A to 250A

Equipped with power & water metering

Easy to control with mobile and smart card simultaneously

Prepaid system included

Delivered with predefined settings and customized labeling

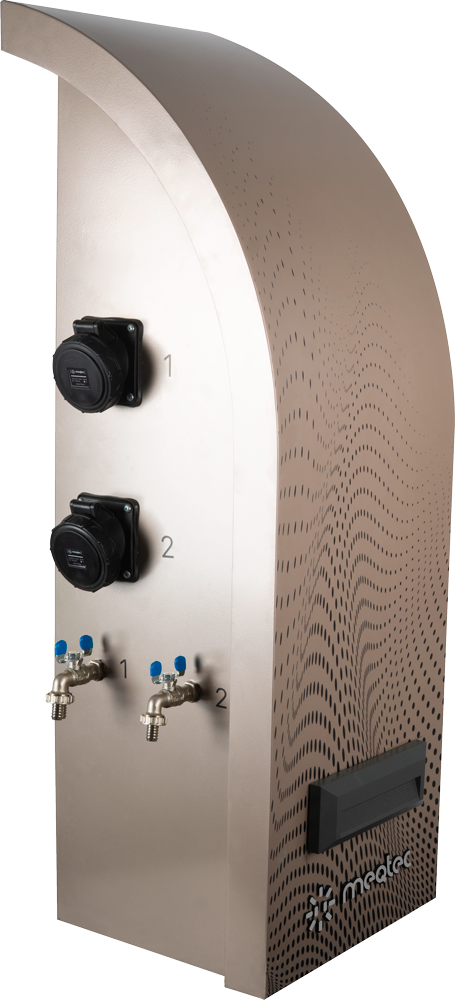

Artisan stainless steel exterior

Highly resistant to impacts (IK10 certified)

Wide range of features

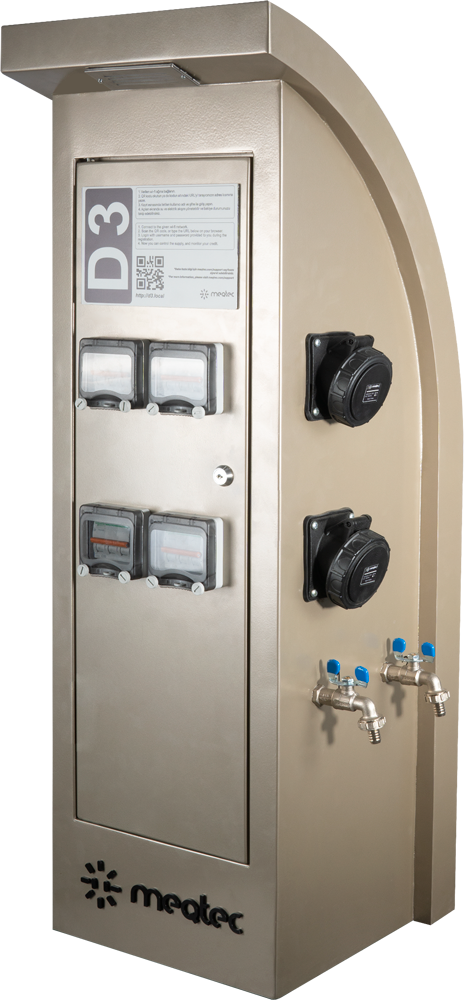

Fully segregated electricity and water compartments

Effective central
software & easy to connect and
use with mobile phones for the users

Technical Specifications

Material	Stainless Steel / Powder Coated Metal
Dimensions (DXLXH mm)	355 x 380 x 1100
Weight	22 kg
Operating Temperature	-30°C + 60°C
IP Rating	Pedestal IP66
	Sockets IP67
Impact Rating	IK 10
Compliances	CE Certified
	EN 61439-7
	EN 62208
	Low/High Temperature EN 60068-2
	IP Rating EN 60529
	Impact Rating EN 62262
	Solar Radiation EN 60068-2-5
	Salt Fog/Mist/Corosion EN 60068-2-52
Number of outlets	Power: 1 to 4
	Water: 1 to 4
Sockets	16A Single Phase to 250A Three Phase
Voltage	115v to 400V / 50-60 Hz
Overload & Fault Current Protection	Seperate for each outlet
Taps	1/2” valves, quick coupling
Metering	Electricity and water metering with remote
	monitoring and prepaid system

Monitoring through local/ marina network or RFID*

Effective central software & easy to connect and use with mobile phones for the users

No need of installing app, no need of internet connection

Easy to control for both operator & users

Innovative control technology

Contemporary exterior design

Top quality certified components & finishings

All service pedestals are delivered with predefined settings for network and customized labeling

Numerious color options for exterior body

High level of customization (i.e. marina logo application)

Fully recyclable exterior

Designed for easy installation

Reduce electricity & water usage thanks to remote controlling technology

Fault alarm with color changing lights

Ready to Pay & Use prepaid system

Illumination with auto switch sensors

Electricity & Water metering

Fully segregated electricity and water compartments

RFID* solution is optional and needs additional loading device and smart cards to use
